Description
Specifications
Basic Unit | U.S. |
Weight base tractor w/backfill blade | 3380 lbs |
Length base tractor w/ backfill blade | 97″ |
Width | 58″ |
Maximum Height | 85″ |
Wheel Base | 46″ |
Ground Clearance | 7.6″ |
Tread Width | 46″ |
ROPS Rating | 7000 lbs |
Engine | U.S. |
Make and Model | Cummins A1700Deutz F3L2011 |
Aspiration | Naturally aspirated |
HP @ 2800 RPM Gross | 42.2 HP |
Horsepower (net) | 41.7 HP |
Maximum Torque | 101 ft-lb |
Displacement | 142.2 cu-in |
Number of Cylinders | 3 |
Cooling Method | Air/Oil |
Max Operating Angle (fore & aft) | 25 deg |
Max Operating Angle (left & right) | 25 deg |
Fuel Type | Diesel |
Air Cleaner | Dry primary filter with safety element |
Electrical | U.S. |
System Voltage | 12 Volt |
Battery CCA Rating | 660 CCA |
Alternator Current Rating (amp) | 60 Amp |
Capacities | U.S. |
Fuel Tank Capacities | 14 gal |
Engine Oil with Filter | 6 qt |
Hydraulic Tank | 9 gal |
Hydraulic System | 12.5 gal |
Ground Drive – General | U.S. |
Ground Drive Type | Hydrostatic |
Clutch Type | 0 |
Brakes | U.S. |
Parking Type | Enclosed Wet Type Multi Disc |
Steering | U.S. |
Type | Hydraulic |
Outside Turning Diameter (front steer only, tires) | 12.75′ |
Outside Turning Diameter (front/rear steer, tires) | 9.5′ |
Rear Steer Control Type | Hydraulic |
Center Mount Trencher | U.S. |
Model Name | TR450 |
Drive Type | Hydrostatic |
Weight – Includes boom/chain | 1160 lbs |
Maximum Digging Depth | 60″ |
Maximum Cutting Width | 12″ |
Minimum Cutting Width | 5″ |
Sliding Offset Trencher-Rubber Tire Only | U.S. |
Model Name | SO450 |
Drive Type | Hydrostatic |
Maximum Digging Depth | 60″ |
Minimum Cutting Width | 5″ |
Maximum Cutting Width | 12″ |
Plow | U.S. |
Model Name | VP40 |
Weight includes blade | 980 lbs |
Plow Depth Range | 24″ |
Backhoe | U.S. |
Model Name | B450 |
Weight With Largest Bucket | 1500 lbs |
Maximum Digging Depth | 77.75″ |
Swing Arc | 170 deg |
Maximum Swing Torque | 3400 ft.lbs |
Leveling Angle | 0 deg |
Bucket Rotation | 124 deg |
Backfill Blade | U.S. |
Model Name | 6-way blade |
Maximum Width | 54″ |
Maximum Height | 15″ |
Maximum Swing Angle | 30 deg |
Maximum Lift Above Ground | 13.5″ |
Maximum Drop Below Ground | 10″ |
Maximum Tilt Angle | 12 deg |
Angle of Approach | 23 deg |
Porta Bore | U.S. |
Drive Type | Hydraulic |
Maximum RPM @ full throttle | 0 rpm |
Maximum Torque | 0 ft-lb |
Direction of Rotation | CW/CCW |
Rod Length | 10′ |

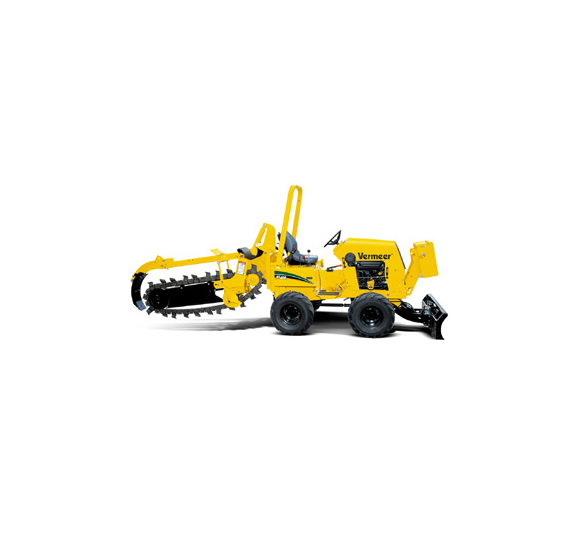

Vermeer rt450 trencher with back hoe attatchment
