Description
Specifications
| Engine | GX270 |
| Displacement | 270 cc |
| Bore and stroke | 3.0″ x 2.3″ |
| Compression Ratio | 8.5:1 |
| Oil Alert | Std |
| Pump type | Trash Centrifugal Self-priming |
| Volute | Rigid Mounted Cast Iron w/ Stainless Wear Plate |
| Impeller | Conical Cast Iron |
| Mechanical Seal (Pump case / impeller) | Silicon Carbide/Silicon Carbide |
| Priming time | 90 sec. @ 14.8 ft. |
| Drive system | Direct |
| Discharge capacity | 317 gal/min |
| Suction port diameter | 3″ |
| Discharge port diameter | 3″ |
| Total head lift | 82 ft. |
| Suction head lift | 26 ft. |
| Maximum pressure | 36 psi |
| Solids handling | 1 1/16 inches |
| Dimensions (LxWxH) | 26.0″ x 19.5″ x 20.3″ |
| Dry weight | 134 lb. |
| Fuel Consumption @ Maximum Discharge | 0.94 gal/hr |
| Minimum Run Time | 1.5 hr |
| Strainer Part # | 78325-YG1-003 |
| Residential Warranty | 3 years |
| Commercial Warranty | 3 years |

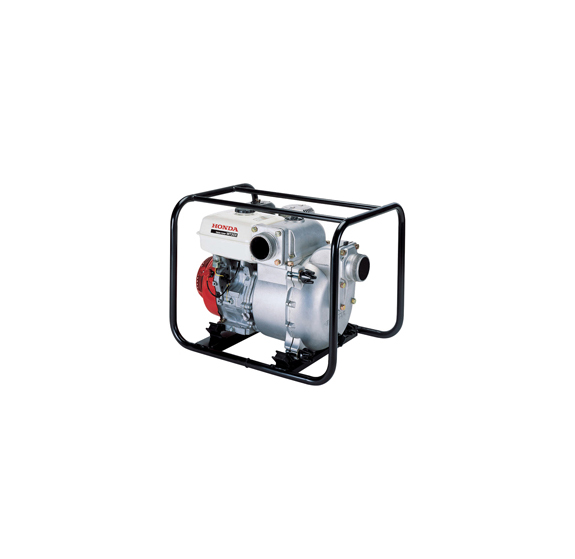

Trash Pump 3” Gas 18,000 Gph
